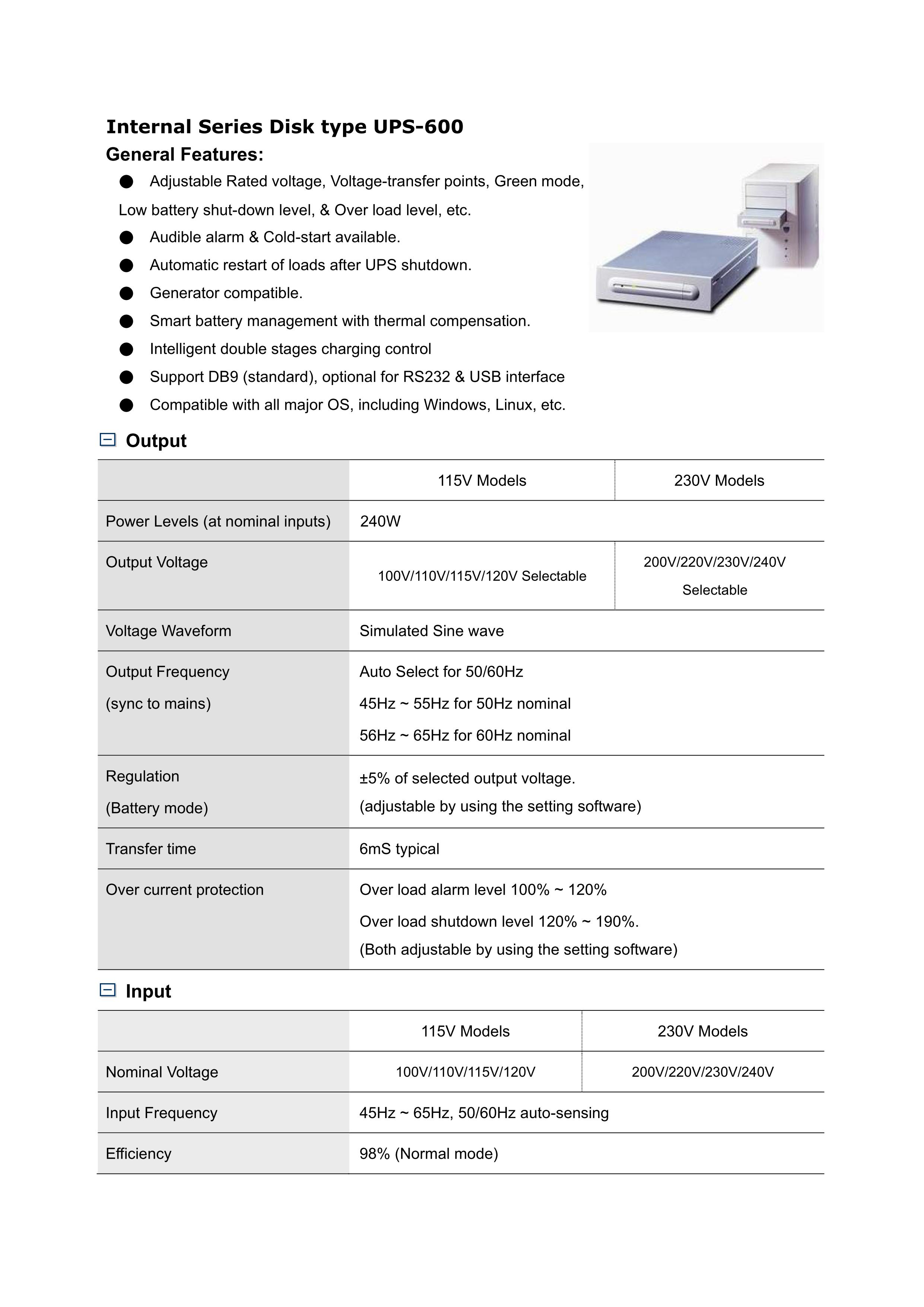

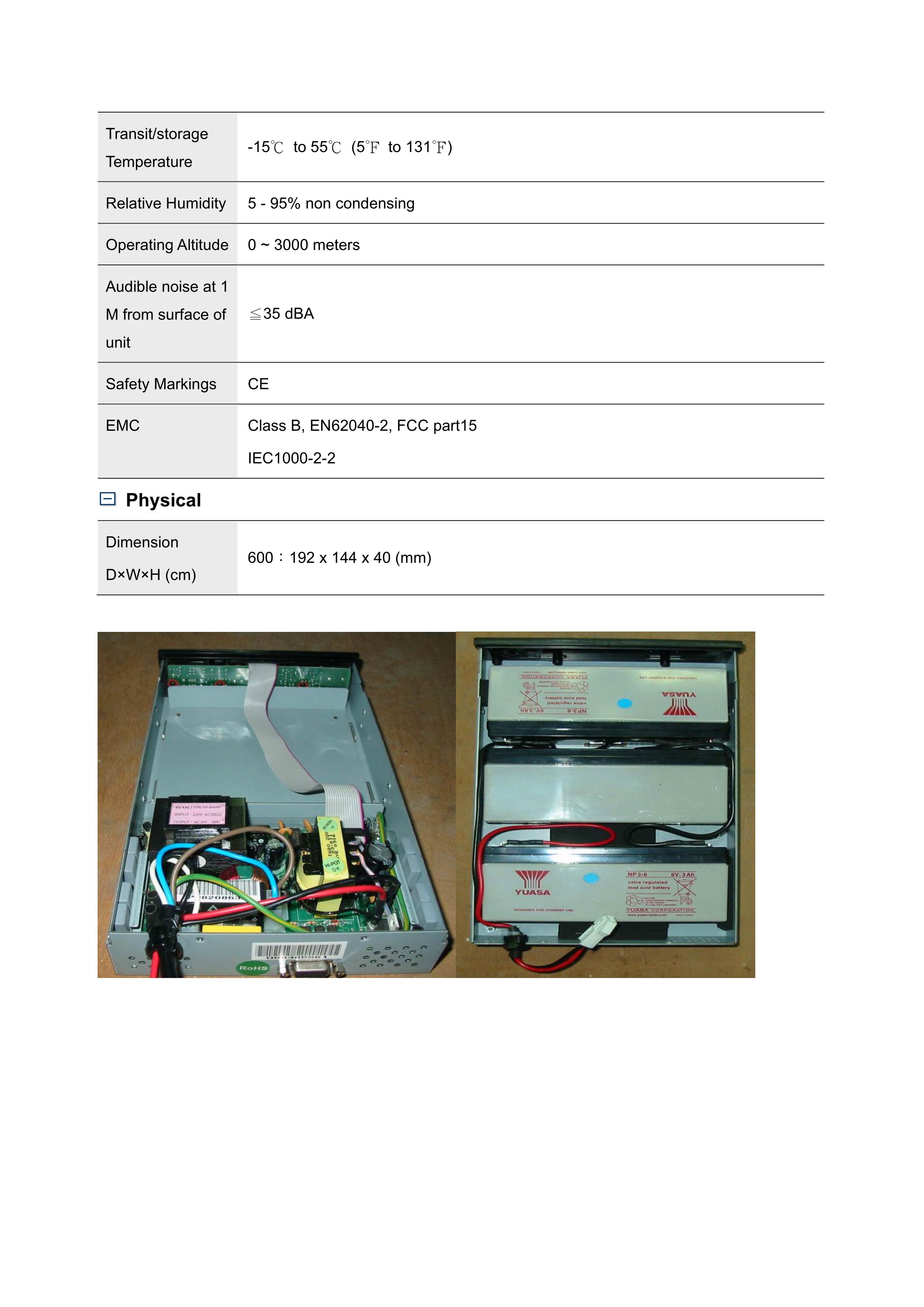

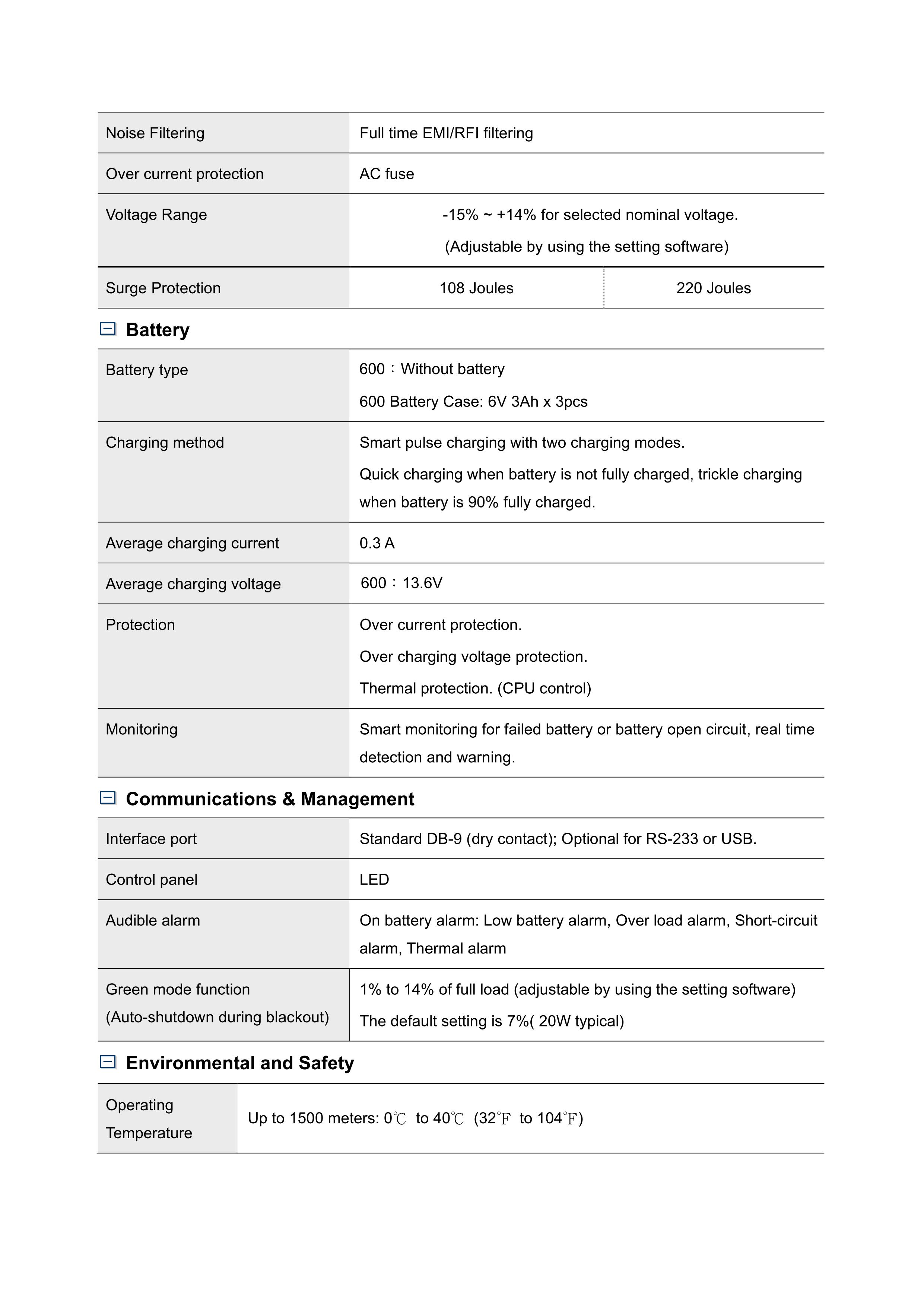

Internal Series DISK UPS, 400 / 401 / 402 / 425 / 425U / 600



General Features: ● Adjustable Rated voltage, Voltage-transfer points, Green mode, Low battery shut-down level, & Over load level, etc. ● Audible alarm & Cold-start available. ● Automatic restart of loads after UPS shutdown. ● Generator compatible. ● Smart battery management with thermal compensation. ● Intelligent double stages charging control ● Support DB9 (standard), optional for RS232 & USB interface ● Compatible with all major OS, including Windows, Linux, etc.

Made in Taiwan
sales@agstech.com.tw

             On-line DC UPS

Input : 90~260V AC

Output : 24V DC



sales@agstech.com.tw

TEL: +886 9 39381389
www.agstech.com.tw

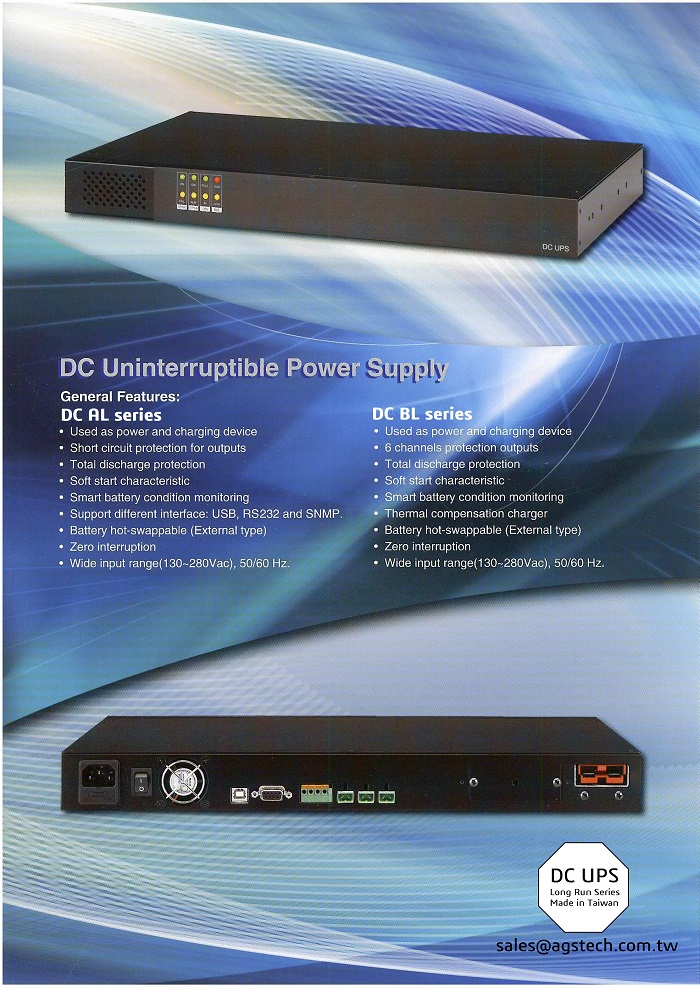

DC UPS Long Back UP / Long Run Model

al Input UPS, 1000VA / 600W, 1500VA / 900W, 2200VA / 1350W

Pure sine wave line interactive, true sine wave, on line UPS, 1KW UPS, 600VA UPS, 1500VA UPS, 5K UPS, off line UPS, made in Taiwan UPS, PSW inverter, true sine wave INVERTER, 1KVA inverter, 1000W Inverter, 1u UPS, disk UPS, internal UPS, 8KVA UPS, 12KVA UPS, DC UPS, DC on LINE UPS, power bank, power supply, charger, power charger

AP-0100 AP-0500 AD-050 AD-100 AGS-050 AGS-100

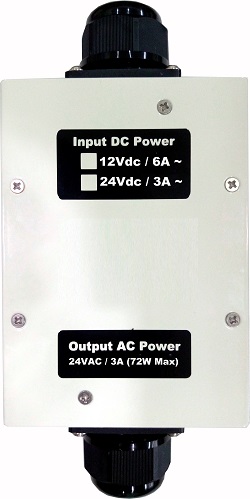

AGS-12243A-2

Outdoor Input 12VDC to 24VAC Power Inverter

(Special Design for Speed Dome 24VAC Power Solution)

AGS-12243A-2 Specification

Model   Number	DC12V To AC24V   inverter (Modified Sine Wave) / PN#12243A-2
	Bitmap
Outdoor 12VDC to 24VAC
Iron Airtight Housing
IP 67
Input DC Voltage	12VDC (10VDC~15VDC Max)
	**Before using, please confirm that the upper   cover is marked with input 12Vdc / 6A~ or 24VDC / 3A~ voltage mode, please   follow the instructions input voltage power supply.
Input DC   Current	12VDC 6A~ (Recommended for 8A above will be better)
Output AC   Voltage	24VAC (22VAC~28VAC Max)
Output AC   Current	2.5A and peak power supply 4A Max
Output Power   Frequency	47-63 Hz
Output Power   Consume Watts	Operating power 60W and peak power supply 100W Max
Input Connector	DC Female   Jack, 1mm spring leaf in Φ6.5mm, OD: 5.5mm / Pin ID: 2.0mm, insertion depth:   7.8mm
	The   chassis can be inserted into the joint depth: 30mm
Output Connector	DC Female   Jack, 1mm spring leaf in Φ6.5mm, OD: 5.5mm / Pin ID: 2.0mm, insertion depth:   7.8mm
	The   chassis can be inserted into the joint depth: 30mm
DC Plug to DC   Plug Connector Cable	DC Plug to DC Plug Connector Cable : OD: 5.5mm / ID 2.1mm,   Barrel Length: 29.2mm
(Newly added product   accessories)	Cable   Length: 19cm, OD 5.0mm, 18AWG
Transform   Efficiency	80% ± 5%
Protection	Input power overcurrent protection
	Low input voltage protection
	High input voltage protection
	Output power overcurrent protection
	Short circuit protection
	Imported power polarity protection for   anti-welding
	Power surge 5KVA protection
Industrial Housing & Connector	Iron Airtight Housing
	IP 67 Gland Connector
	**   Top cover marked 12VDC / 6A ~ and 24VDC / 3A ~ of the shipping product input   voltage mark distinction
Operating   Temperature	-30°C ~ +70°C (Use at -30°C environment, please be sure to   inform in advance, related accessories and wires should be replaced;   Recommends that the equipment will be installed in the power distribution   box)
Storage   Temperature	-40°C ~ +80°C
Rel. Humidity	10~95%RH
Dimension	210mm(L) x 92mm(W) x 50mm(H)
Weight	0.5Kg (body); 0.7Kg (packing with fixing sheet)
Housing	IP67
Certification	CE : EMC Directive 2014/30/EU for CE Marking / EN55032:2015   Class B
	FCC: FCC Part 15 Subpart B Class B / CISPR 22 :   2008 Class B / ANSI C63.4 : 2014
Installation	1.Street lamp pole mount or Upright pole mount
	2.Wall mount installation
Warranty	12 months
	Made in Taiwan
Remark   1: Product specifications change, without notice, consultation with agent or   dealer before buying the latest specifications
Remark   2: Before using, please confirm that the upper cover is marked with input   12Vdc / 6A ~ or 24VDC / 3A ~ voltage mode,
please   follow the instructions input voltage power supply.

Battery Charger
	■ DC 6V, 12V, 24V, 36V & 48V
	■ Protections
	Battery Reverse
	Short-Circuit
	Overload
	Over Temperature
	■ LiFEPO4 Types -- 12 /16 cells
	◆ Contact us: sales@agstech.com.tw

valve-regulated lead-acid (VRLA) 壓力安全閥，鉛酸免加水電池
Gelled Electrolyte (Gel)  GEL膠體(態)電池
Absorbed Glass Mat (AGM) Batteries浸泡玻璃纖維織物電池
EFB: Enhanced Flooded Battery 強化型鉛酸電池

AVR (Automatic Voltage Regulator)
	* Welcome for inquiry!
	◆ Contact us: sales@agstech.com.tw

UPS - Uninterruptible Power Supply
	■ ON Line - True Sine Wave
	■ OFF Line - Square (Simulated) Sine Wave
	■ Line Interactive True (Pure) Sine Wave
	■ Line Interactive  Square (Simulated) Sine Wave
	■ DC UPS
	■ Internal Disk UPS
	■ Others
◆ E: sales@agstech.com.tw                skype: glinda.tw

Dual Input UPS, 1000VA / 600W, 1500VA / 900W, 2200VA / 1350W

Pure sine wave line interactive, true sine wave, on line UPS, 1KW UPS, 600VA UPS, 1500VA UPS, 5K UPS, off line UPS, made in Taiwan UPS, PSW inverter, true sine wave INVERTER, 1KVA inverter, 1000W Inverter, 1u UPS, disk UPS, internal UPS, 8KVA UPS, 12KVA UPS

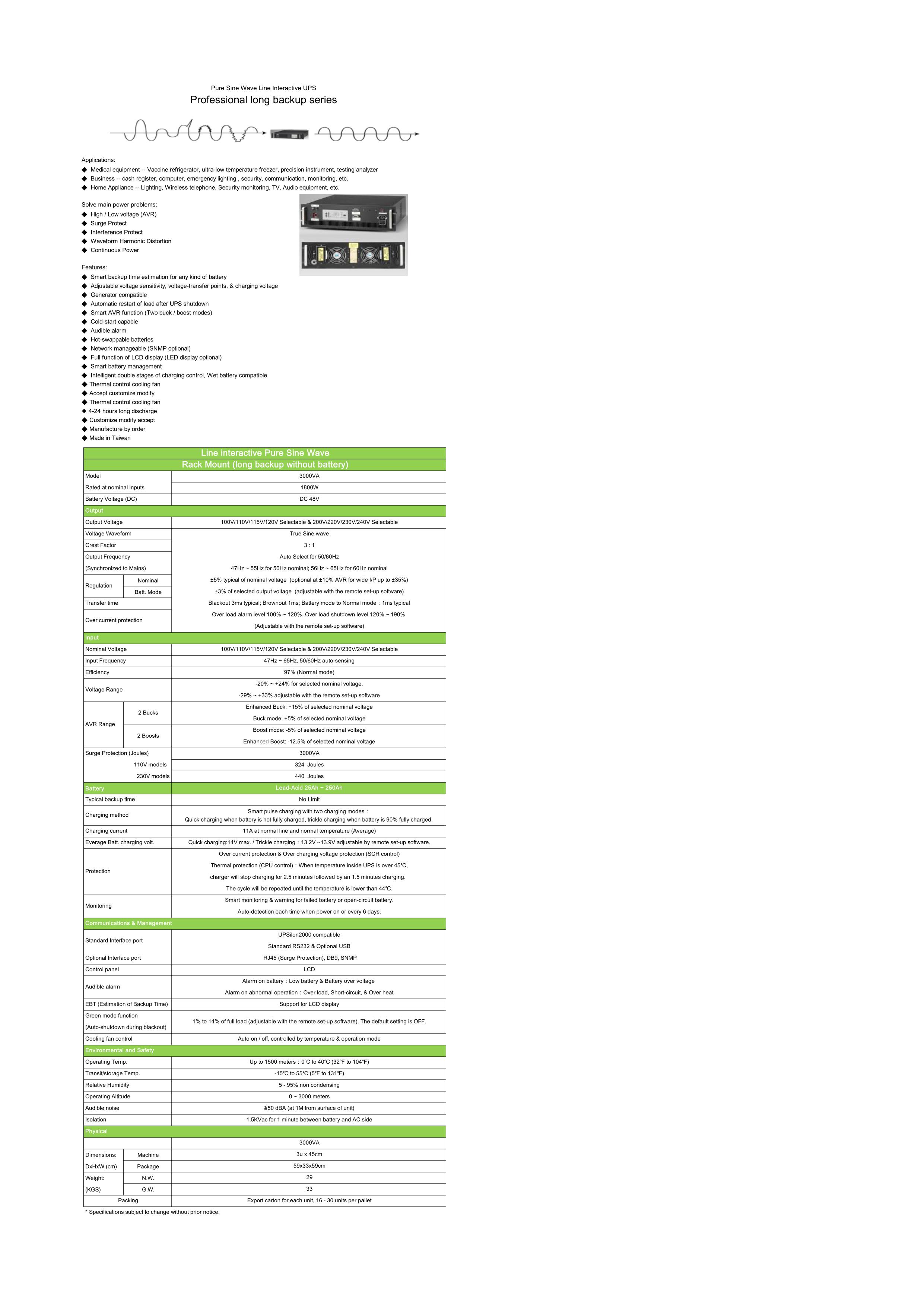

Pure Sine Wave Line Interactive UPS
Professional long backup series
	[if gte vml 1]>Bitmap

[endif][if !mso & vml]> Applications:  ◆  Medical equipment -- Vaccine refrigerator, ultra-low temperature freezer, precision instrument, testing analyzer  ◆  Business -- cash register, computer, emergency lighting , security, communication, monitoring, etc.  ◆  Home Appliance -- Lighting, Wireless telephone, Security monitoring, TV, Audio equipment, etc. [if gte vml 1]>Bitmap[endif] Solve main power problems: ◆  High / Low voltage (AVR) ◆  Surge Protect ◆  Interference Protect ◆  Waveform Harmonic Distortion ◆  Continuous Power Features:  ◆  Smart backup time estimation for any kind of battery ◆  Adjustable voltage sensitivity, voltage-transfer points, & charging voltage ◆  Generator compatible ◆  Automatic restart of load after UPS shutdown  ◆  Smart AVR function (Two buck / boost modes) ◆  Cold-start capable  ◆  Audible alarm  ◆  Hot-swappable batteries ◆  Network manageable (SNMP optional)  ◆  Full function of LCD display (LED display optional) ◆  Smart battery management ◆  Intelligent double stages of charging control, Wet battery compatible  ◆ Thermal control cooling fan ◆ Accept customize modify ◆ Thermal control cooling fan ◆ 4-24 hours long discharge ◆ Customize modify accept ◆ Manufacture by order ◆ Made in Taiwan Line interactive Pure Sine Wave Rack Mount (long backup without battery) Model 3000VA Rated at nominal inputs 1800W Battery Voltage (DC) DC 48V Output Output Voltage 100V/110V/115V/120V Selectable & 200V/220V/230V/240V Selectable Voltage Waveform True Sine wave Crest Factor 3 : 1 Output Frequency Auto Select for 50/60Hz (Synchronized to Mains) 47Hz ~ 55Hz for 50Hz nominal; 56Hz ~ 65Hz for 60Hz nominal Regulation Nominal ±5% typical of nominal voltage  (optional at ±10% AVR for wide I/P up to ±35%) Batt. Mode ±3% of selected output voltage  (adjustable with the remote set-up software) Transfer time Blackout 3ms typical; Brownout 1ms; Battery mode to Normal mode：1ms typical Over current protection Over load alarm level 100% ~ 120%, Over load shutdown level 120% ~ 190%  (Adjustable with the remote set-up software) Input Nominal Voltage 100V/110V/115V/120V Selectable & 200V/220V/230V/240V Selectable Input Frequency 47Hz ~ 65Hz, 50/60Hz auto-sensing Efficiency  97% (Normal mode) Voltage Range -20% ~ +24% for selected nominal voltage. -29% ~ +33% adjustable with the remote set-up software AVR Range 2 Bucks Enhanced Buck: +15% of selected nominal voltage Buck mode: +5% of selected nominal voltage 2 Boosts Boost mode: -5% of selected nominal voltage Enhanced Boost: -12.5% of selected nominal voltage Surge Protection (Joules) 3000VA 110V models   324  Joules 230V models 440  Joules Battery 　 Lead-Acid 25Ah ~ 250Ah Typical backup time No Limit Charging method Smart pulse charging with two charging modes：
Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged. Charging current 11A at normal line and normal temperature (Average) Everage Batt. charging volt. Quick charging:14V max. / Trickle charging：13.2V ~13.9V adjustable by remote set-up software. Protection Over current protection & Over charging voltage protection (SCR control) Thermal protection (CPU control)：When temperature inside UPS is over 45℃, charger will stop charging for 2.5 minutes followed by an 1.5 minutes charging.   The cycle will be repeated until the temperature is lower than 44℃. Monitoring Smart monitoring & warning for failed battery or open-circuit battery. Auto-detection each time when power on or every 6 days. Communications & Management Standard Interface port UPSilon2000 compatible Standard RS232 & Optional USB Optional Interface port  RJ45 (Surge Protection), DB9, SNMP Control panel LCD Audible alarm Alarm on battery：Low battery & Battery over voltage  Alarm on abnormal operation：Over load, Short-circuit, & Over heat EBT (Estimation of Backup Time) Support for LCD display Green mode function 1% to 14% of full load (adjustable with the remote set-up software). The default setting is OFF. (Auto-shutdown during blackout) Cooling fan control Auto on / off, controlled by temperature & operation mode Environmental and Safety Operating Temp. Up to 1500 meters：0℃ to 40℃ (32℉ to 104℉) Transit/storage Temp. -15℃ to 55℃ (5℉ to 131℉) Relative Humidity 5 - 95% non condensing Operating Altitude 0 ~ 3000 meters Audible noise ≦50 dBA (at 1M from surface of unit) Isolation 1.5KVac for 1 minute between battery and AC side Physical 　 3000VA Dimensions: Machine 3u x 45cm DxHxW (cm) Package 59x33x59cm Weight:  N.W. 29 (KGS) G.W. 33 Packing Export carton for each unit, 16 - 30 units per pallet * Specifications subject to change without prior notice.

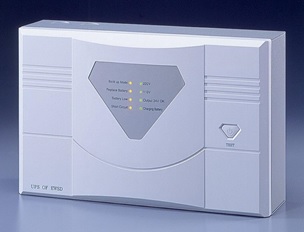

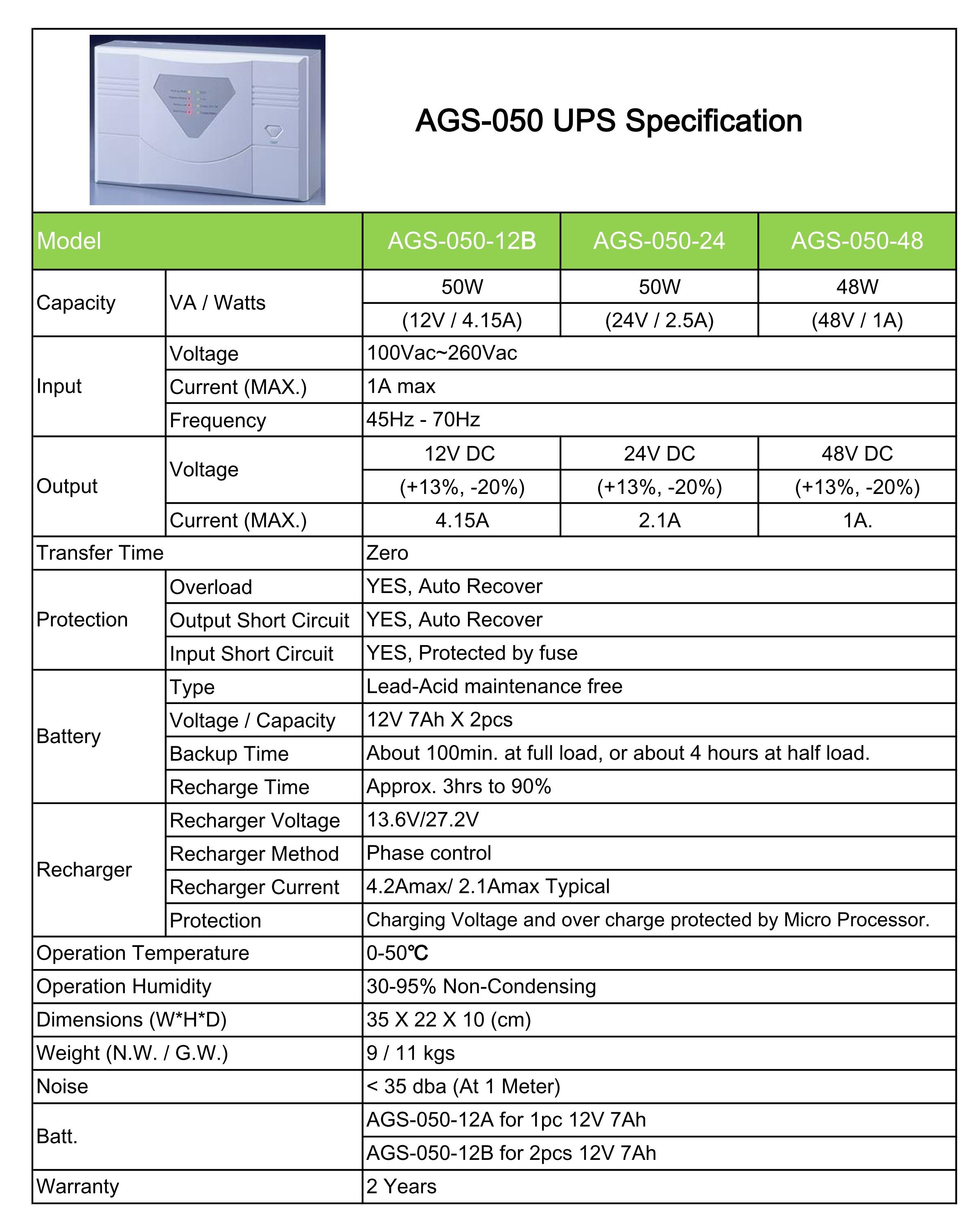

DC UPS BTS series AGS-050

Dual Input UPS, 1000VA / 600W, 1500VA / 900W, 2200VA / 1350W

Pure sine wave line interactive, true sine wave, on line UPS, 1KW UPS, 600VA UPS, 1500VA UPS, 5K UPS, off line UPS, made in Taiwan UPS, PSW inverter, true sine wave INVERTER, 1KVA inverter, 1000W Inverter, 1u UPS, disk UPS, internal UPS, 8KVA UPS, 12KVA UPS, DC UPS, DC on LINE UPS, power bank, power supply, charger, power charger

AP-0100 AP-0500 AD-050 AD-100 AGS-050 AGS-100



CCTV inverter - DC12V to AC24V - IP67

Inverter
	■ Low Frequency Inverter
	* Pure Sine Wave    * Telecom Inverter    * CCTV AC 24V Inverter
	■ High Frequency Inverter
	* Modified Sine Wave
	* Pure Sine Wave
	◆ Contact us: sales@agstech.com.tw

Dual Input UPS, 1000VA / 600W, 1500VA / 900W, 2200VA / 1350W

Pure sine wave line interactive, true sine wave, on line UPS, 1KW UPS, 600VA UPS, 1500VA UPS, 5K UPS, off line UPS, made in Taiwan UPS, PSW inverter, true sine wave INVERTER, 1KVA inverter, 1000W Inverter, 1u UPS, disk UPS, internal UPS, 8KVA UPS, 12KVA UPS, DC UPS, DC on LINE UPS, power bank, power supply, charger, power charger, AS-400 CARD, S

DC-AC Sine Wave Inverters for CCTV and Security Systems

50VA Rugged, Industrial Quality Sine Wave Inverter for CCTV Systems ABSOPULSE Electronics has recently released the CSI 50-24/24-FT, an industrial quality low voltage DC-AC inverter, specifically designed and optimized for powering CCTV systems. The inverter utilizes field proven, microprocessor controlled high frequency PWM technology to convert the 24Vdc input to a 24Vac pure sine wave output. Regulation is better than ±3% from no load to full load. Efficiency is a minimum of 80% at full load at 24Vdc output. A 12Vdc, 36Vdc, 48Vdc or 125Vdc input version is available on request. A purpose designed topology for this low input/output version streamlines the circuitry, resulting in higher MTBF at lower cost versus comparable 115Vac output units. The input and output are filtered for low noise. The input meets the requirements for EN55022 Class B for conducted noise and radiated emissions. This ensures that the unit can be used in EMI sensitive environments, including residential areas, without any additional filtering. The CSI 50-24/24-FT unit is cooled by natural convection. Heat generating components are also conduction cooled to the base plate. When installed on a heat-sinking surface, the +50°C operating temperature can be extended up to 70°C. Versions for -20°C or lower temperatures are also available. The compact, light-weight inverter is housed in a robust aluminum chassis. Full ruggedizing and conformal coating are available for immunity to high levels of shock, vibration and moisture. Electronic protection includes inrush current limiting, reverse polarity protection, input transient clamping, output current limiting and short-circuit protection. It meets EN/UL60950-1 and equivalent industrial standards. ABSOPULSE Electronics is an original equipment manufacturer (OEM). We design and manufacture an extensive range of industrial and railway grade ac-output power conversion products in-house.   Key Features Sinusoidal output voltage Application: CCTV and security systems DC-input: 24Vdc (12Vdc, 36Vdc, 48Vdc or 125Vdc on request) AC-output: 24Vac continuous at 50Hz Line-load regulation: ±3% from no load to full load EMI: EN55022 Class B Cooling by natural convection Full ruggedizing and conformal coating (optional) 0°C to +50°C operating temperature range at full spec. Up to +70°C as well as -20°C or lower operating temp. available Output-fail alarm, Form C (optional) Minimum 80% efficiency at full load Dimensions: 114 x 51 x 201 mm (4.5" x 2" x 7.9") W x H x D Generic Specifications - CSI 50-24/24-FT Data sheet

NMP, computer UPS

UPS-Uninterruptible Power Supply
	■ Welcome ODM customize design.
	■ Welcome OEM housing design.
	■ Sleeping mode saving power cost.
	■ USB charging with data transfer.
	■ 2 sockets always on.
	■  6 sockets power off when PC in sleeping mode.
	■ With surge protect.
