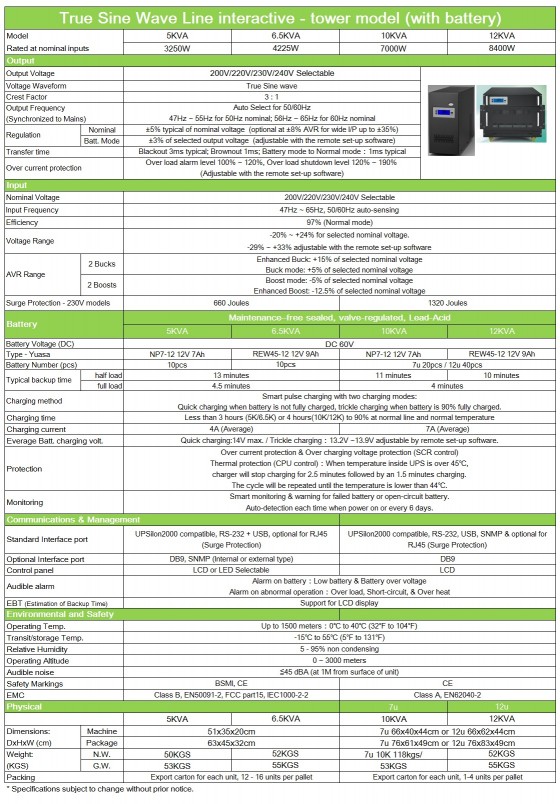

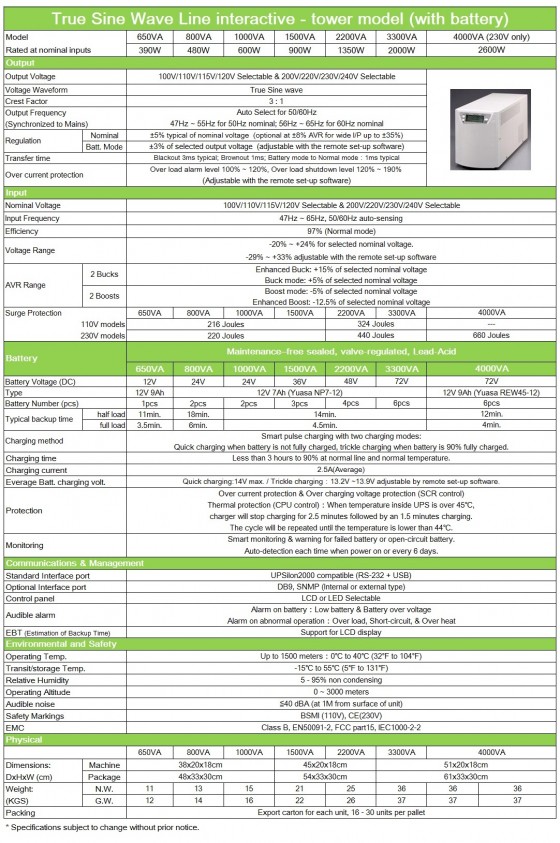

True Sine Wave Line Interactive 650KVA~12KVA





  UPS - Uninterruptible Power Supply
  ON Line - True Sine Wave
  OFF Line - Square (Simulated) Sine Wave
  Line Interactive True (Pure) Sine Wave
  Line Interactive  Square (Simulated) Sine Wave
  DC UPS
  Internal Disk UPS
  ■ Others
    E: sales@agstech.com.tw   skype: glinda.tw

Dual Input UPS, 1000VA / 600W, 1500VA / 900W, 2200VA / 1350W

Pure sine wave line interactive, true sine wave, on line UPS, 1KW UPS, 600VA UPS, 1500VA UPS, 5K UPS, off line UPS, made in Taiwan UPS, PSW inverter, true sine wave INVERTER, 1KVA inverter, 1000W Inverter, 1u UPS, disk UPS, internal UPS, 8KVA UPS, 12KVA UPS

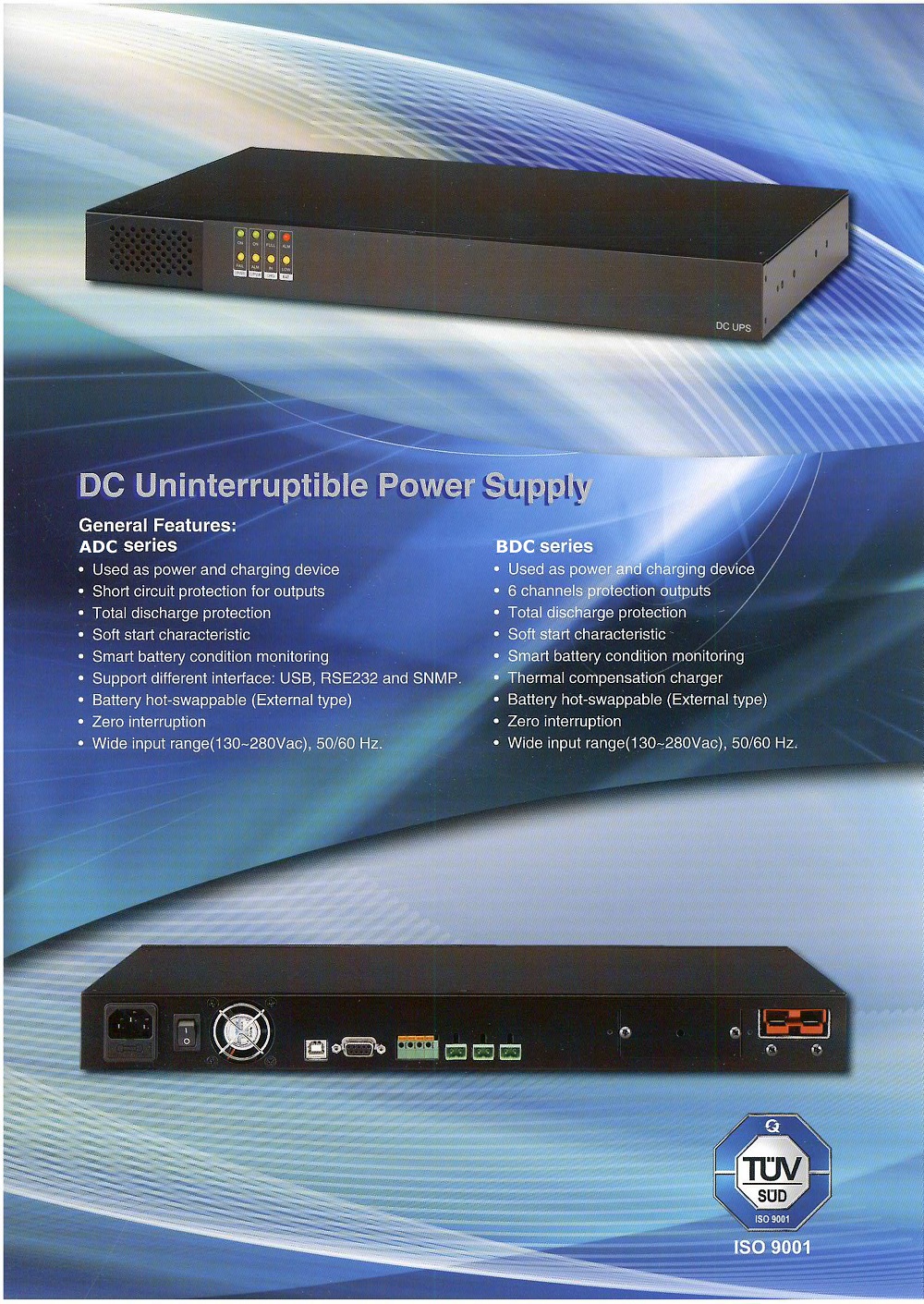

DC UPS

DC UPS

AGS-050 / -100 UPS Specification

Model

AGS-XXX-12

AGS-XXX-24

AGS-XXX-48

Capacity

VA / Watts



50W/100W



50W/100W

45W/90W

Input

Voltage

90Vac~260Vac

Current   (MAX.)

1A for 50W, 2A   for 100W

Frequency

45Hz - 70Hz

Output

Voltage

12V DC

10~13.5 Vdc

24V DC

20~27 Vdc

48V DC

47~49 Vdc

Current   (MAX.)

4.2A/8.4A

2.1A/4.2A

0.94A./1.88A

Transfer   Time

Zero

Protection

Overload

YES, Auto Recover



Output   Short Circuit

YES, Auto   Recover



Input Short   Circuit

YES, Protected by fuse

Battery

Type

12V/7Ah Lead-Acid   maintenance free



Voltage /   Capacity

12V (1 or 2pcs)

24V(2pcs 12V/7Ah)



Max. Charging Current

50W   model: 4A

100W   model:8A

50W   model: 2A

100W   model:4A



Backup Time at 12V/7Ah 2pcs



25W   Loading : 5.5 hrs

50W   Loading : 2.5 hrs

100W   Loading : 65 mins

Operation Temperature

0-45

Operation Humidity

30-95% Non-Condensing

Dimensions (W*H*D)

35 X 22 X 10 (cm)

Weight   (N.W. / G.W.)

50W: 8/ 9.5 kgs /100W:8.5/10kgs

Noise

< 35 dba (At 1   Meter)

Warranty

2 Years



Note.

AGS-XXX-12A for 1pc 12V 7Ah

AGS-XXX-12B for 2pcs   12V 7Ah

BTS series











Dual Input UPS, 1000VA / 600W, 1500VA / 900W, 2200VA / 1350W

Pure sine wave line interactive, true sine wave, on line UPS, 1KW UPS, 600VA UPS, 1500VA UPS, 5K UPS, off line UPS, made in Taiwan UPS, PSW inverter, true sine wave INVERTER, 1KVA inverter, 1000W Inverter, 1u UPS, disk UPS, internal UPS, 8KVA UPS, 12KVA UPS, DC UPS, DC on LINE UPS, power bank, power supply, charger, power charger

AP-0100 AP-0500 AD-050 AD-100 AGS-050 AGS-100



INVERTER DC to AC

CCTV inverter - DC12V to AC24V - IP67



  Inverter
  ■ Low Frequency Inverter
     * Pure Sine Wave
   * Telecom Inverter
   * CCTV AC 24V Inverter
  ■ High Frequency Inverter
      * Modified Sine Wave
      * Pure Sine Wave
  ◆ Contact us: sales@agstech.com.tw

Dual Input UPS, 1000VA / 600W, 1500VA / 900W, 2200VA / 1350W

Pure sine wave line interactive, true sine wave, on line UPS, 1KW UPS, 600VA UPS, 1500VA UPS, 5K UPS, off line UPS, made in Taiwan UPS, PSW inverter, true sine wave INVERTER, 1KVA inverter, 1000W Inverter, 1u UPS, disk UPS, internal UPS, 8KVA UPS, 12KVA UPS, DC UPS, DC on LINE UPS, power bank, power supply, charger, power charger, AS-400 CARD, S

DC-AC Sine Wave Inverters for CCTV and Security Systems
50VA Rugged, Industrial Quality Sine Wave Inverter for CCTV Systems

ABSOPULSE Electronics has recently released the CSI 50-24/24-FT, an industrial quality low voltage DC-AC inverter, specifically designed and optimized for powering CCTV systems.

The inverter utilizes field proven, microprocessor controlled high frequency PWM technology to convert the 24Vdc input to a 24Vac pure sine wave output. Regulation is better than ±3% from no load to full load. Efficiency is a minimum of 80% at full load at 24Vdc output. A 12Vdc, 36Vdc, 48Vdc or 125Vdc input version is available on request.

A purpose designed topology for this low input/output version streamlines the circuitry, resulting in higher MTBF at lower cost versus comparable 115Vac output units.

The input and output are filtered for low noise. The input meets the requirements for EN55022 Class B for conducted noise and radiated emissions. This ensures that the unit can be used in EMI sensitive environments, including residential areas, without any additional filtering.

The CSI 50-24/24-FT unit is cooled by natural convection. Heat generating components are also conduction cooled to the base plate. When installed on a heat-sinking surface, the +50°C operating temperature can be extended up to 70°C. Versions for -20°C or lower temperatures are also available.

The compact, light-weight inverter is housed in a robust aluminum chassis. Full ruggedizing and conformal coating are available for immunity to high levels of shock, vibration and moisture.

Electronic protection includes inrush current limiting, reverse polarity protection, input transient clamping, output current limiting and short-circuit protection. It meets EN/UL60950-1 and equivalent industrial standards.

ABSOPULSE Electronics is an original equipment manufacturer (OEM). We design and manufacture an extensive range of industrial and railway grade ac-output power conversion products in-house.



Key Features
  • Sinusoidal output voltage
  • Application: CCTV and security systems
  • DC-input: 24Vdc (12Vdc, 36Vdc, 48Vdc or 125Vdc on request)
  • AC-output: 24Vac continuous at 50Hz
  • Line-load regulation: ±3% from no load to full load
  • EMI: EN55022 Class B
  • Cooling by natural convection
  • Full ruggedizing and conformal coating (optional)
  • 0°C to +50°C operating temperature range at full spec.
  • Up to +70°C as well as -20°C or lower operating temp. available
  • Output-fail alarm, Form C (optional)
  • Minimum 80% efficiency at full load
  • Dimensions: 114 x 51 x 201 mm (4.5" x 2" x 7.9") W x H x D

NMP, computer UPS

* Battery Chager

  Battery Charger
  ■ DC 6V, 12V, 24V, 36V & 48V
  Protections
      Battery Reverse
      Short-Circuit
      Overload
      Over Temperature
  ■ LiFEPO4 Types -- 12 /16 cells
  ◆ Contact us: sales@agstech.com.tw

* AVR (Automatic Voltage Regulator)

  AVR (Automatic Voltage Regulator)
