External 5 Watt CB Speaker with 8 Ohms Impedance
sales@agstech.com.tw

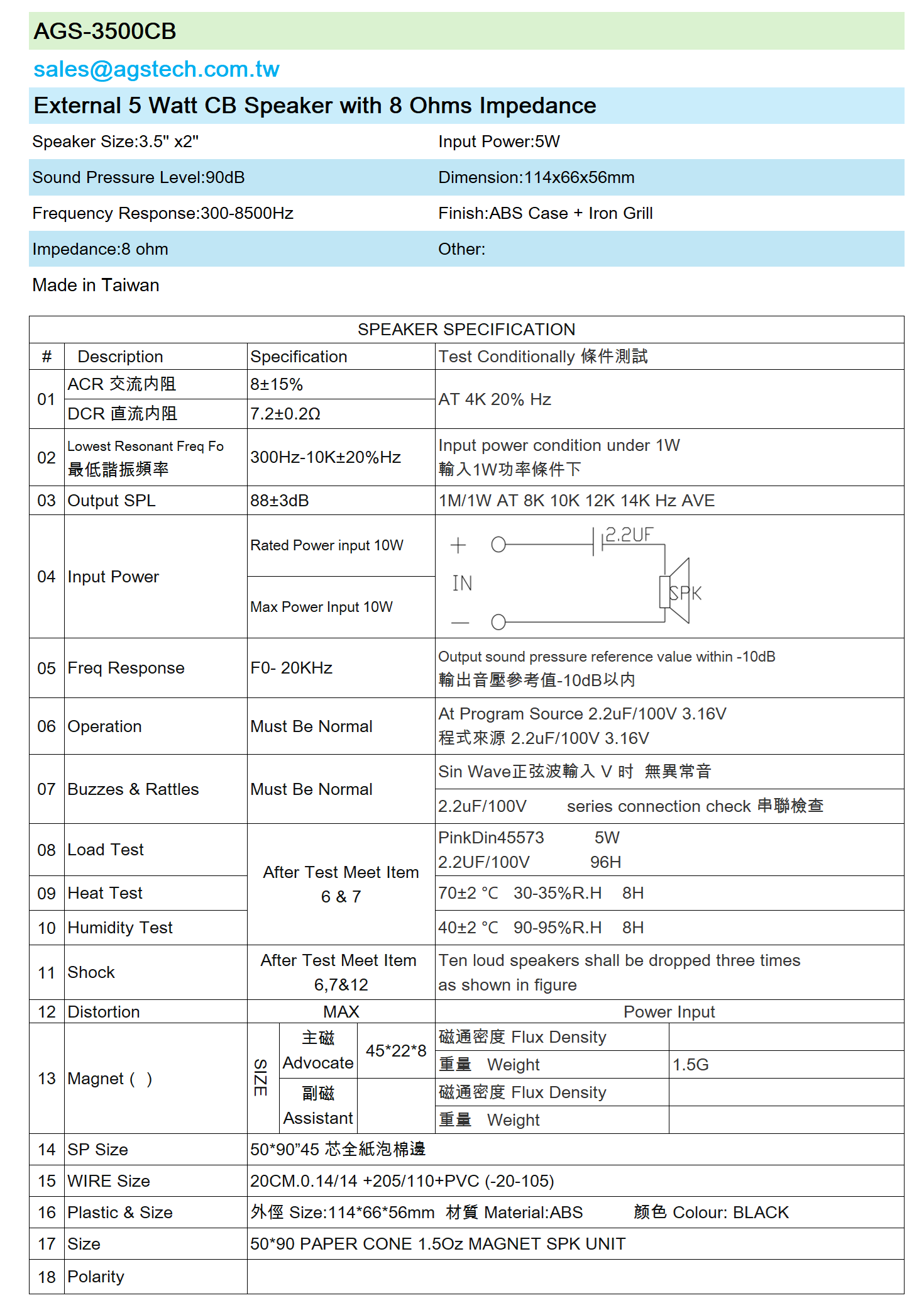

AGS-3500CB
sales@agstech.com.tw
External 5 Watt CB Speaker with 8 Ohms Impedance
Speaker Size:3.5" x2" Input Power:5W
Sound Pressure Level:90dB Dimension:114x66x56mm
Frequency Response:300-8500Hz Finish:ABS Case + Iron Grill
Impedance:8 ohm Other:
Made in Taiwan

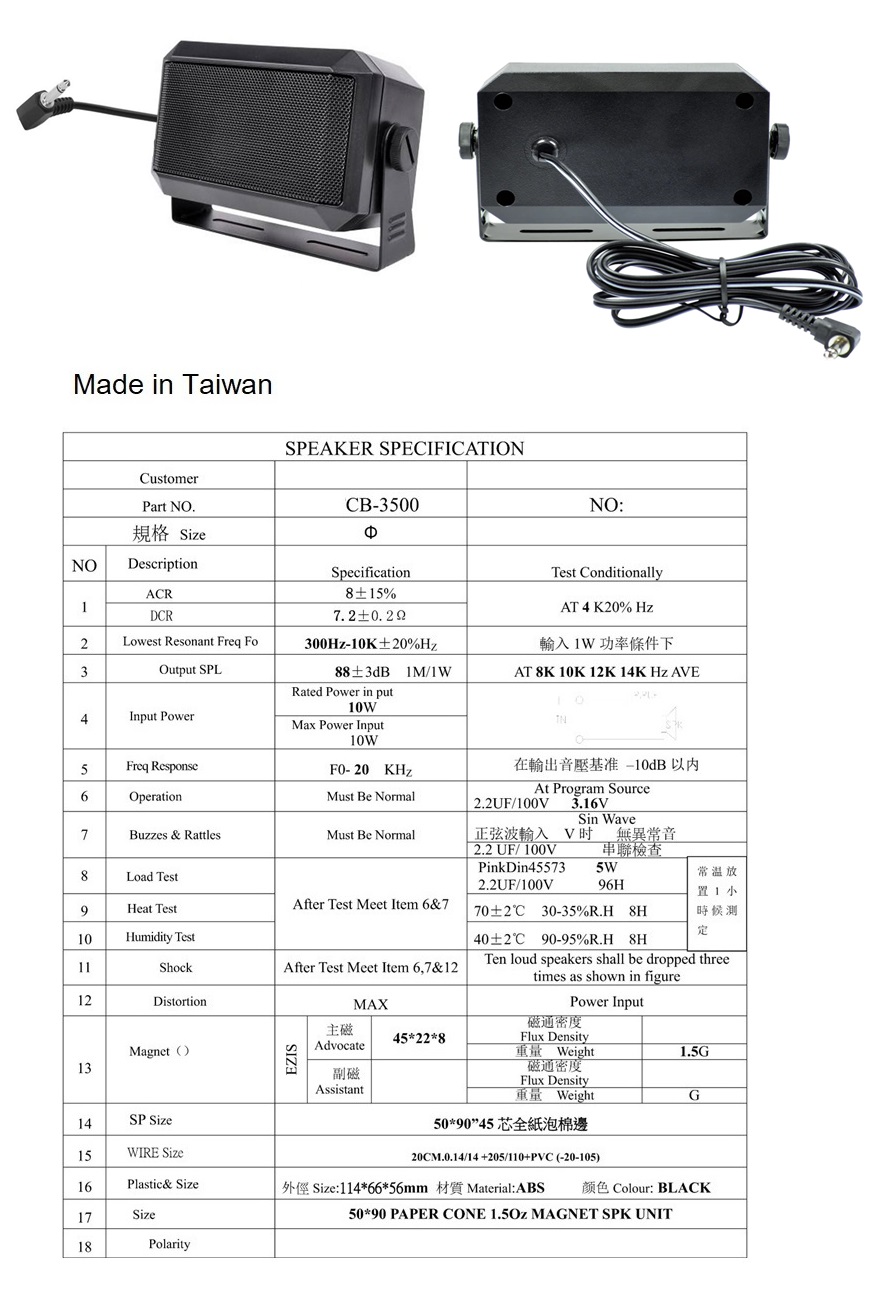

SPEAKER SPECIFICATION
# Description Specification Test Conditionally 條件測試
01 ACR 交流内阻 8±15% AT 4K 20% Hz
DCR 直流内阻 7.2±0.2Ω
02 "Lowest Resonant Freq Fo
最低諧振頻率" 300Hz-10K±20%Hz "Input power condition under 1W
輸入1W功率條件下"
03 Output SPL 88±3dB 1M/1W AT 8K 10K 12K 14K Hz AVE
04 Input Power Rated Power input 10W
Max Power Input 10W
05 Freq Response F0- 20KHz "Output sound pressure reference value within -10dB
輸出音壓參考值-10dB以内"
06 Operation Must Be Normal "At Program Source 2.2uF/100V 3.16V
程式來源 2.2uF/100V 3.16V"
07 Buzzes & Rattles Must Be Normal Sin Wave正弦波輸入 V 时 無異常音
2.2uF/100V series connection check 串聯檢查
08 Load Test "After Test Meet Item
6 & 7" "PinkDin45573 5W
2.2UF/100V 96H"
09 Heat Test 70±2 ℃ 30-35%R.H 8H
10 Humidity Test 40±2 ℃ 90-95%R.H 8H
11 Shock After Test Meet Item 6,7&12 "Ten loud speakers shall be dropped three times
as shown in figure"
12 Distortion MAX Power Input
13 Magnet（） SIZE "主磁
Advocate" 45*22*8 磁通密度 Flux Density
重量 Weight 1.5G
"副磁
Assistant" 磁通密度 Flux Density
重量 Weight
14 SP Size 50*90”45 芯全紙泡棉邊
15 WIRE Size 20CM.0.14/14 +205/110+PVC (-20-105)
16 Plastic & Size 外俓 Size:114*66*56mm 材質 Material:ABS 颜色 Colour: BLACK
17 Size 50*90 PAPER CONE 1.5Oz MAGNET SPK UNIT
18 Polarity
Universal CB Extension Speaker with Swivel Bracket
Special Feature降噪 Noise Cancelling
Surround Sound Channel Configuration環繞音效通道配置 5.1
Is Waterproof TRUE
Wireless Communication Technology Bluetooth
Speaker Size 4 Inches
Power Source Corded Electric
Tweeter Diameter 1 Inches
Connectivity Protocol Bluetooth
Includes MP3 player? No
Is Electric Yes
Product Dimensions 5.11 x 7.59 x 20.29 cm; 204.12 g
Audio input compatible with the item Auxiliary
Wattage 5 Watts
Batteries Included No
Batteries Required No
Includes Rechargeable Battery No
Item Weight 204 g
Speaker Size: 3.5” x 2” "Durable metal mesh grill
Includes swivel bracket and 8' cord with 3.5mm plug
5 Watts and 8 Ohm operating power"
Speaker Magnet: 45mm
Sound Pressure Level: 90db
Frequency Range: 300-8000Hz
Impedance: 8 ohms
Input Power: 7W Max

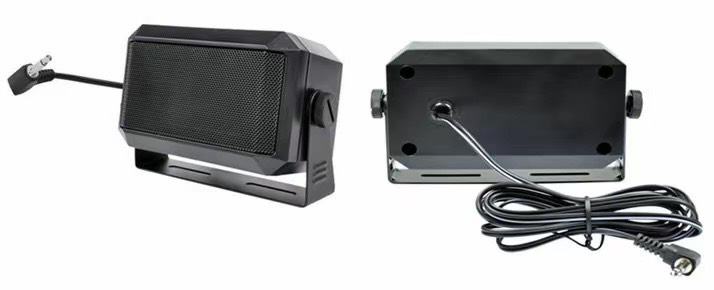

Dimensions: 5” x 2.6” x 2.2” without bracket This CB extension speaker has a durable metal mesh grill and includes a swivel bracket.
Mounting bracket and hardware included
5ft cord with right angle 3.5mm mono jack
Made in Taiwan
Our thicker wall ABS housing and larger open back frame provide rich tones over a wider range of frequencies.
The secured speaker ensures no unwanted vibrations from the speaker within the housing that could affect audio quality.
This is a great sounding speaker for your Scanner, Ham radio, or CB radio if space is a concern!
Our thicker wall ABS housing and larger open back frame combine to produce a richer tone that rivals other external speakers twice its size.
Included are a metal bracket and mounting hardware.
NOTICE: Not recommended for use with a headphone jack. Headphone output levels are reduced to protect the listener and require an amplified speaker. Passive Speakers are designed for use with an External Speaker Output Jack.
Not all speakers and housings are created equal. Check out these images.
